diagnostics

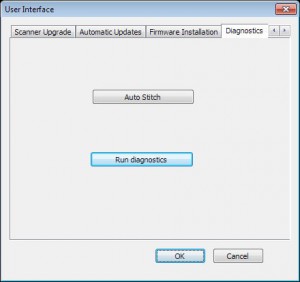

Information displayed:

– in exceptional circumstances use this tab and the Auto Stitch option to re-align the stitch between the major arrays of sensors in the SingleSensor. An SC Series stitch target of the appropriate width will be required to complete this task. It is advisable to record the stitch values (see Manual Stitch section) before using the Auto Stitch in case of difficulty
It is recommended to contact Colortrac Technical Support before attempting to use the Diagnostics option

Functions available:

– click the Auto Stitch button to start the automatic re-stitch procedure
– click OK to return to front screen

NOTES: AutoStitch will not mend a 1 pixel manufacturing mis-alignment within any major sensor array.  This type of error is unavoidable and within the quoted tolerances of =/- 1 pixel for any Colortrac scanner
